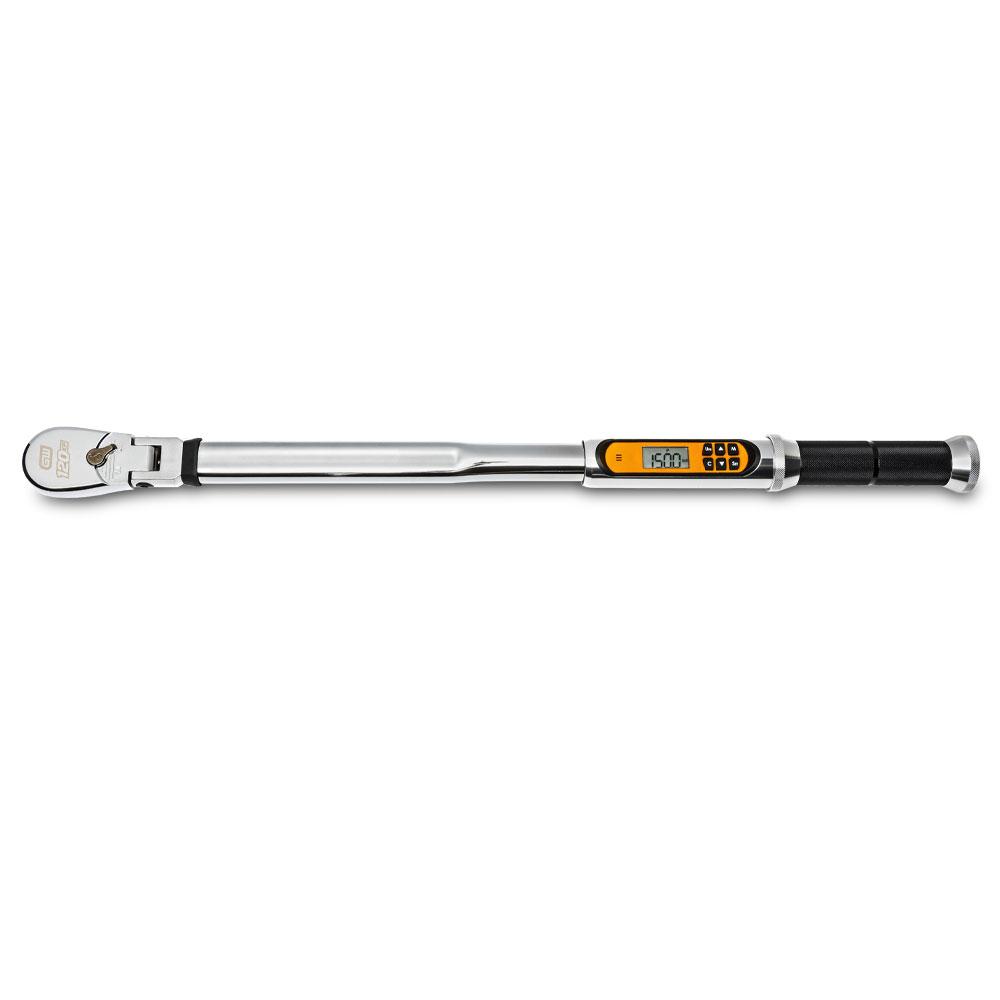

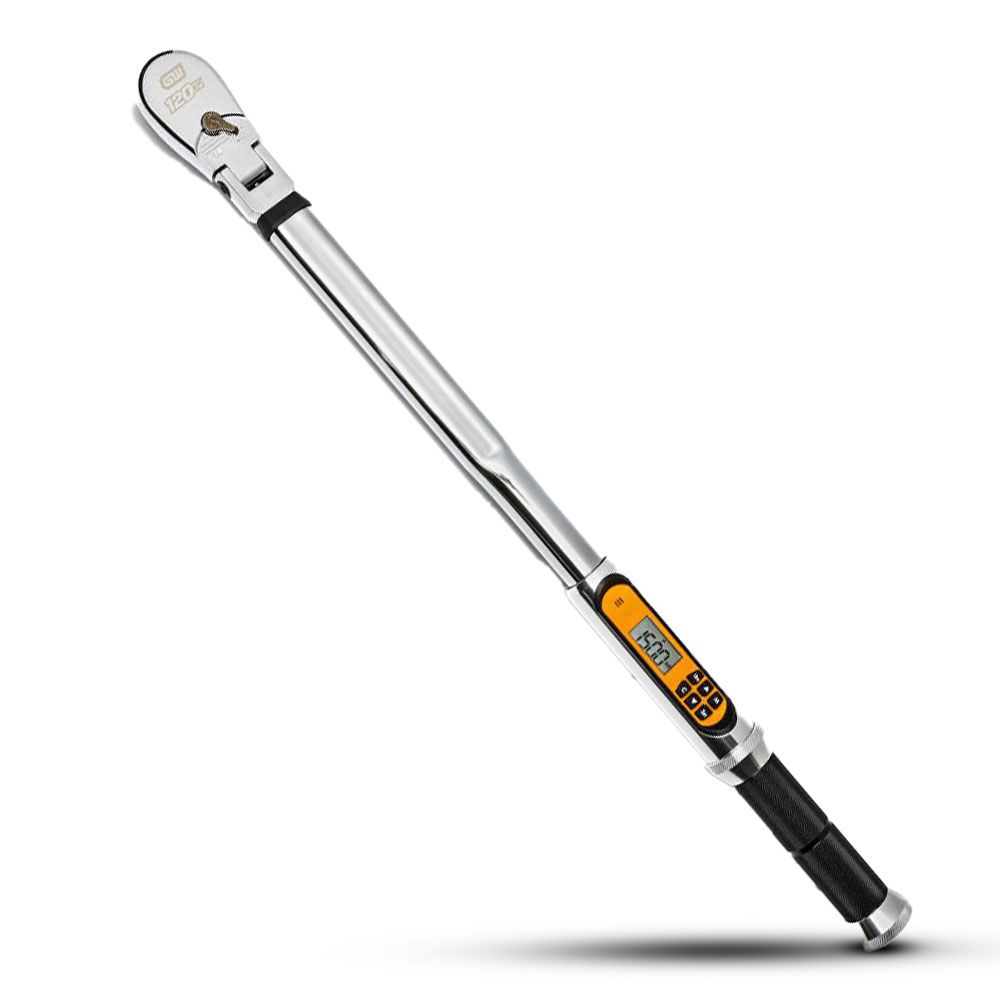

GEARWRENCH 85196 1/2" Drive 120XP™ Flex Head Electronic Torque Wrench With Angle

GEARWRENCH 85196 1/2" Drive 120XP™ Flex Head Electronic Torque Wrench With Angle

Features:

• 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces
• Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability Angle settings offer +/-1% of reading of angle accuracy
• Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines

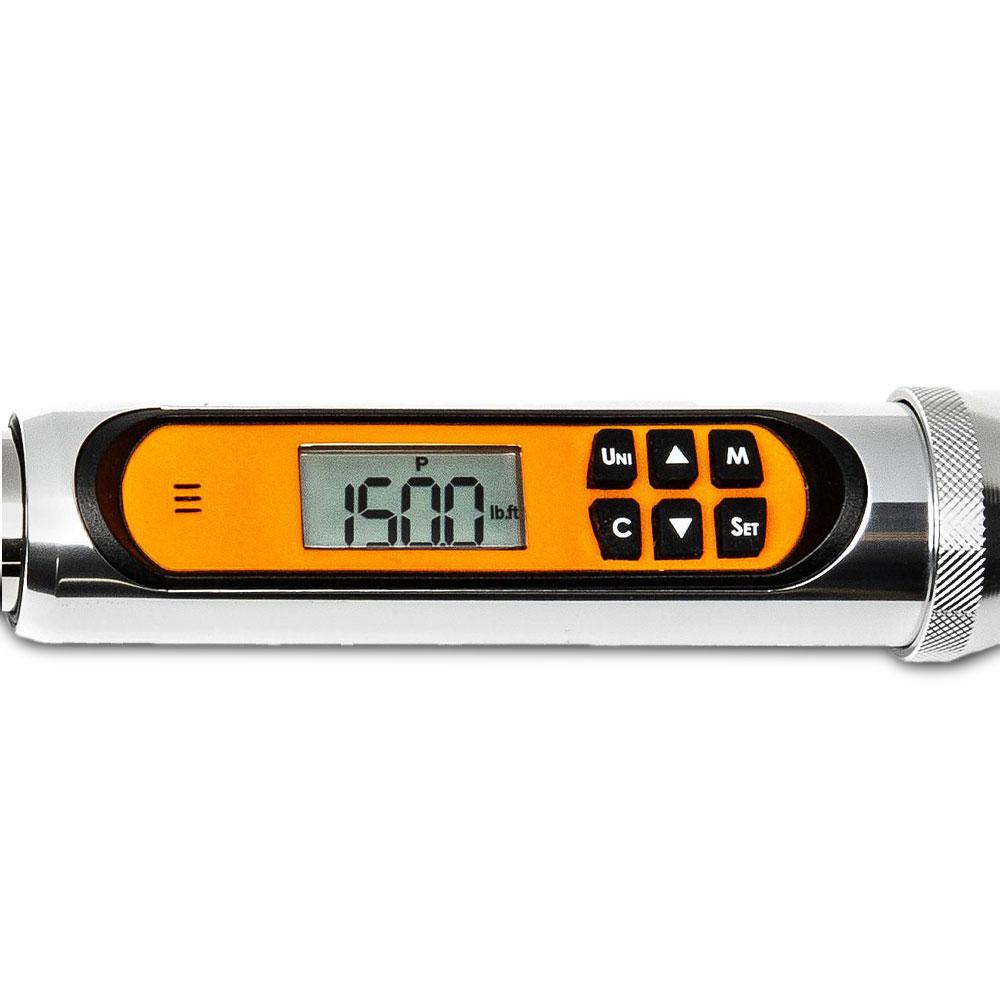

• Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached
• 3 function modes feature peak torque, angle, and peak angle for additional versatility
• 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
• 10 available preset torque settings allow you to quickly access frequently repeated applications
• Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
• Meets or exceeds ASME standards and specifications

Specifications:

• Drive Size: 1/2" Drive
• Ratcheting Tooth count: 120 XP Tooth
• Ratchet Drive ASME Spec: ASME B107.10
• Flex Head: 15 Degrees
• Modes: Peak Torque, Peak Angle, Angle Mode
• Torque Measurements: FT-Lb, Un-Lb, NM, KG-Cm, KG-M
• Torque Range:

  • Ft-Lb: 25 - 250 Ft-Lb
  • In-Lb: 301 - 3010 In-Lb
  • Nm: 34 - 340 Nm
  • Kg-Cm: 350 - 3500 Kg-Cm
  • Kg-M: 3.5 - 35 Kg-M
• Scale Increments:

  • Ft-Lb: 0.1 Ft-Lb
  • In-Lb: 1 In-Lb
  • Nm: 0.1Nm
  • Kg-Cm: 1 Kg-Cm
  • Kg-M: 0.01 Kg-M
• Torque Accuracy: 20- 100%of Scale 2% CW, 3%CCW
• Operating Load Markings ASME Spec: Center Line for load postion marked on both sides of handle grip
• Angle range: 5-999 Degrees
• Angle Display Increments: 1 Degree
• Angle Accuracy: (+/-1% of reading) + (+/- 1 degree @angular velocity > 10 degree/sec <180 degree/sec) + (+/-1 degree of test fixtrure)
• Calibration and Cycle Life Testing meet/exceed ASME: Meets or Exceeds ASME B107.300-2010calibration and cycle test requirements
• Preset Torque Measurements: 10
• Target Torque Alert: Target Torque Alert default setting 10% before Target
• Peak Mode: Yes
• Angle Mode: Yes
• Goal warning: Tone, Vibrating handle, Screen changes green/red
• Water Resistance: Splash Proof
• Solvent Resisitance: Meets ASME B107.12 - brake fluid, gasoline, ethylene glycol, ethyl alcholol
• Batteries: 2 x AA
• Battery Life: Exceeds ASME spec B107.28. Length of time will operate on 2 x AA batteries - actual over 20 hours
• Packaging: Blow mold case with clasp
• Instruction Manual: Instruction manual - Tri lingual
• Calibration Certificate: Calibration Certificate - Tri lingual
• Prop 65 Meets Prop 65 Requirements
• FCC regulations for Digital Devices: Meets FCC regulations for digital devices
• Product Markings: Torque range and serial number laser etched on beam as req. by ASME B107.28

Warranty:

• 1 year limited warranty; calibration accuracy warrantied for 90 days
